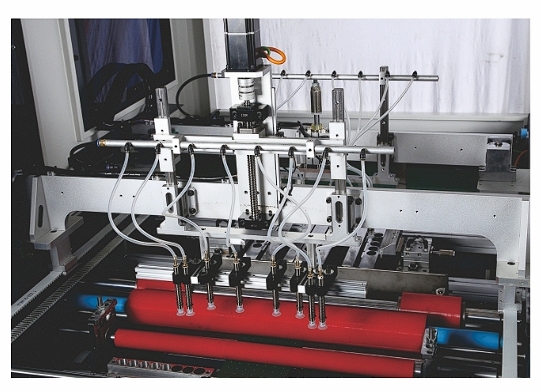

Automatic collapsible box wing making machine

Automatic collapsible box side wing forming machine is a new type of equipment that is economical, practical, and widely used in the manufacturing of gift boxes, primarily for the folding and wrapping of the side panels of the boxes.

Price Interview

Price Interview

Automatic collapsible box wing making machine

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Online Video Inquiry

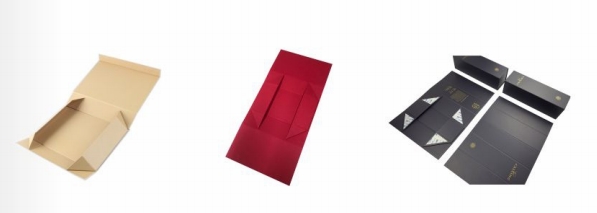

Automatic collapsible box side wing forming machine is a new type of equipment that is economical, practical, and widely used in the manufacturing of gift boxes, primarily for the folding and wrapping of the side panels of the boxes. This machine can improve production efficiency, ensure the quality and consistency of packaging, and is also flexible to adapt to different packaging box requirements developed. According to market needs, it can make five-piece boards, three-piece boards, and one-piece board. At the same time, it can be connected to the customer’s existing ordinary production line and used with the positioning machine. It provides convenience for customers and saves equipment purchase costs. To ensure the stability and precise positioning of the machine, the actions of the side wing forming machine are completed by servo drive, fiber optic positioning, cylinder shoveling, and glue roller flattening, which can handle both small and large batches

Automatic collapsible box wing making machine

Specification
ModelKy-630A
Max Size120*630mm
Min Size40*230mm
Paper thickness100-200gsm
Cardboard thickness1-3mm
Thickness of side board0.5-1mm
Working speed15-28pcs/min
Precision±0.2-0.3mm
Machine power220V/7kw
Machine dimension1800*1950*2150mm

No comment

Product Detail

Automatic collapsible box side wing forming machine is a new type of equipment that is economical, practical, and widely used in the manufacturing of gift boxes, primarily for the folding and wrapping of the side panels of the boxes. This machine can improve production efficiency, ensure the quality and consistency of packaging, and is also flexible to adapt to different packaging box requirements developed. According to market needs, it can make five-piece boards, three-piece boards, and one-piece board. At the same time, it can be connected to the customer’s existing ordinary production line and used with the positioning machine. It provides convenience for customers and saves equipment purchase costs. To ensure the stability and precise positioning of the machine, the actions of the side wing forming machine are completed by servo drive, fiber optic positioning, cylinder shoveling, and glue roller flattening, which can handle both small and large batches

Automatic collapsible box wing making machine

Specification
ModelKy-630A
Max Size120*630mm
Min Size40*230mm
Paper thickness100-200gsm
Cardboard thickness1-3mm
Thickness of side board0.5-1mm
Working speed15-28pcs/min
Precision±0.2-0.3mm
Machine power220V/7kw
Machine dimension1800*1950*2150mm
