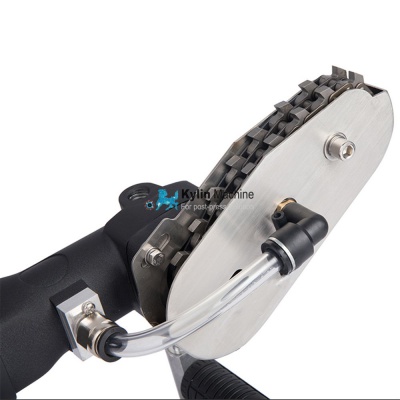

The Waste Stripper is equipped with a multi-tooth chain driven by a compressed air motor with an output of 400W. Its teeth do not cut the paper, they catch it. Your operator simply needs to hold the device, while the Waste Stripper takes care of the rest – a simple procedure, and incredibly quick. Overall, it strips up to 10 times quicker than by hand !
To simplify and reduce the operator’s workload, the Waste Stripper can now be equipped with our load balancer, a support device which compensates for the weight of the Waste Stripper (4kg). The machine operator will then only have to guide the device, without supporting its weight.

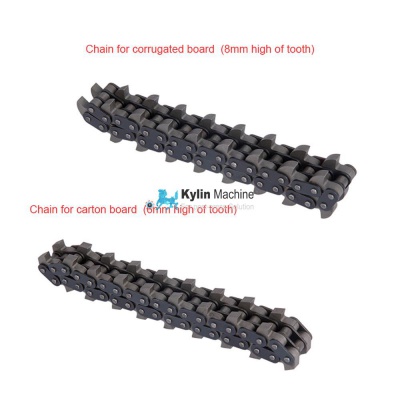

Spare parts : maintenance kit for the chain and spare chain
The service life of the Waste Stripper chain depends on several factors : amount and length of use, type of materials stripped and maintenance. Sparing daily lubrication significantly increases the chain’s service life.
The carton stripper,waste stripper is suitable for waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry. Range for the paper is 150GSM-1000GSM cardboard, single and double corrugated paper, double laminated corrugated paper.
Features:

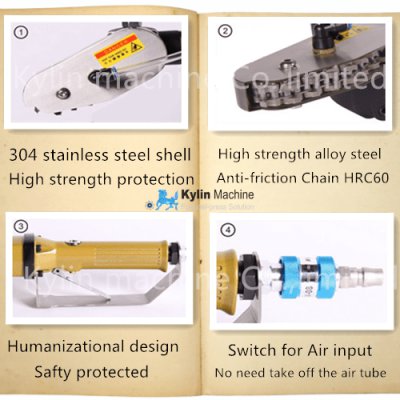

(1) For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry, high speed running gear is cycle driven through air motor, strip waste margin paper with sharp teeth gear. The gear use high strength diamond compound after heat treatment, high hardness, wear resistance, long life and easy replacement.
(2) The product is high efficient manual stripping equipment, stripping efficiency is improved by 10 times, manual stripping needs hours, finished only in 10-30 minutes with stripping machine, greatly shorten the delivery cycle.
(3) Compact configuration, almost the same weight as normal grinder, easy to use, workers can operate the machine after simple training, no damage for bonding area while stripping, improve the efficiency of the following process(gluing/automatic packing)
(4) Use original German Pneumatic motor for the power, does not exist the problem that brush easy to be broken as ordinary hand-held grinder, and safety, long service life
waste stripper
Specification
| Model | Ky-680 |
| Weight of paper | 150GSM-1000GSM cardboard, corrugated board |
| The frequency of grasping paper | 3000R. P. M |
| Output power | 800W Air |
| consumption | 10CFM |
| Noise next to machine | 91 dB |
| Noise at 1 metre away from machine | 86dB |
| Ambient noise | 34dB |
| Net Weight: | 4Kg |
| Dimension | 470× 170× 220mm |
